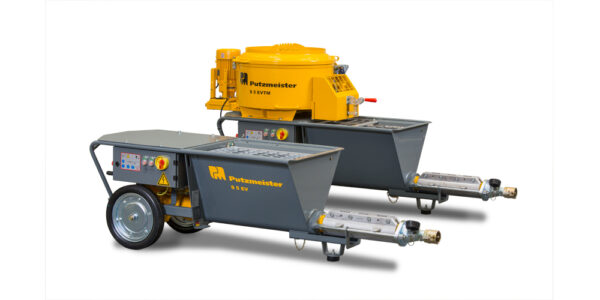

PUTZMEISTER S 5 EV / ETM Universal Worm Pump

The modular system of the S 5 is based on a worm pump with a powerful 5.5 kW drive. The basic version is particularly suitable for users who pump and spray pumpable wet mortars with grain sizes of up to 6 mm.
It provides the basis for the extended S 5 EVTM version with pan mixer. The advantage: You can also retrofit the pan mixer on the S 5 EV. The pan mixer enables you to mix high-quality materials in both cases.

Share this product

Description

The modular system of the S 5 is based on a worm pump with a powerful 5.5 kW drive. The basic version is particularly suitable for users who pump and spray pumpable wet mortars with grain sizes of up to 6 mm.
It provides the basis for the extended S 5 EVTM version with pan mixer. The advantage: You can also retrofit the pan mixer on the S 5 EV. The pan mixer enables you to mix high-quality materials in both cases.

Key Features

  • Larger hopper with safety grill and safety switch
  • Plug-in cardan shaft for easy worm part replacement
  • Infinitely adjustable delivery rate
  • Mounted pan mixer (TM), ideal for materials needing to be mixed especially intensively



Technical Data

S 5 EV

Feed Hopper – 80 l
Output – 7-40 l/min
Horizontal Reach gross – 60 m
Vertical Reach – 40 m
Delivery Pressure – 25 bar
Pump – 2L6
Engine – Electric
Engine Power – 5.5 kW
Operating Voltage / Frequency – 400 V / 50 Hz
Weight – 190 kg
Length x Width x Height – 2290 x 680 x 650 mm
Filling Height – EV: 650 / EVTM: 1150 mm
Max. Aggregate Size – 6 mm
Pressure Connection – M 50

S 5 EVTM

Feed Hopper – 100 l
Engine Power – 2.2 kW
Weight – 400 kg
Length x Width x Height – 2505 x 680 x 1150 mm
Filling Height – 1150 mm



Downloads

We’ve put together some useful information on this product available for download.

S5 EV EVTM Worm Pump Data Sheet
