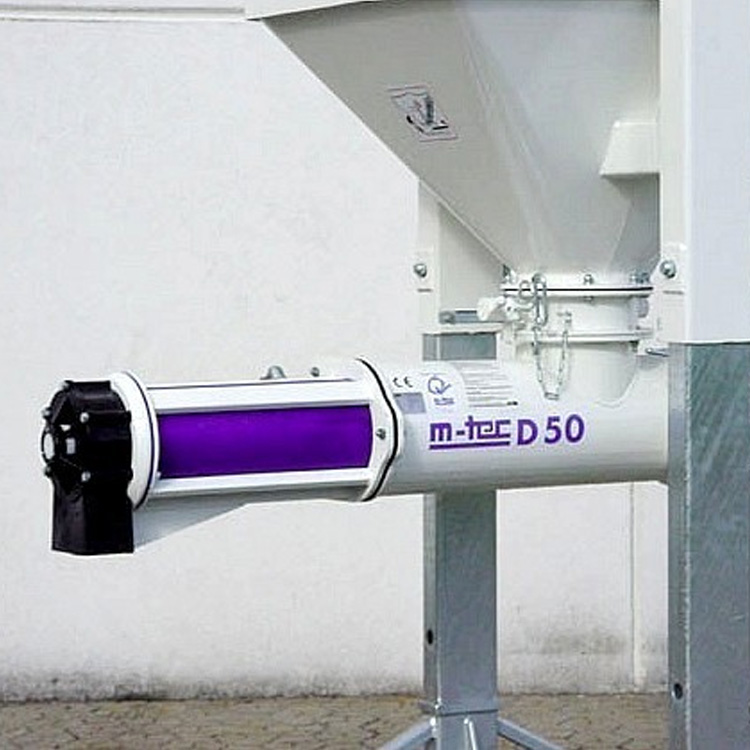

D50 Continuous Mixer

D50 Continuous Mixer Available for Sale and Hire (requires additional control box)

Mixer D50 is fitted with highly modern PU components that guarantee economically effective and efficient operation. It is designed to process dry mortar products with a granularity of up to 4mm and is found on numerous building sites throughout the world. The D50 is used with bricklaying mortar and insulating mortar, plasters, screeds fine concrete Gunite and Dry Process Shotcrete.

Share this product


D50 Continuous Mixer – Fitted with a powerful 4.0 kW motor it even mixes heavy products with ease. The direct mounting on a silo or open top hopper creates a compact unit that speeds up work on the building site. The use of PU components, for example in the mixing chamber, reduces the effort required for cleaning purposes. In addition, these modern building materials increase service life and eliminate any chance of corrosion. The individually interchangeable mixing blades enable the D50 to be adapted to almost any product – an advantage that should not be underestimated in view of the wide variety of products used today. As an option, our patent mixing system can be ordered for mixer D50, ensuring the perfect blending of dry mortar products.

As is typical of all m-tec systems, the D50 has easy and quick to use connector systems that enable important elements, such as the mixing chamber or mixer motor, to be replaced in just a few seconds. The m-tec S40 control panel is the control unit for mixer D50. It can cope with every situation and a number of different versions are available in line with the performance of the continuous mixer. Starting from a hand-operated, economical basic model and ranging to a fully automatic version with remote control, timer and probe control, the m-tec S40 control panels meet every challenge a modern building site can produce.

Easy Clean
The use of PU components makes cleaning easier and means less caking than with similar metal components. The result: quick, residue-free cleaning.

Easy Work
Uninterrupted operation with consistent mixing quality thanks to our intelligent machine technology. The separation of dry and wet areas enables a permanent constant ratio of dry material to water to be achieved.

Easy Mix
Our patented mixing system enables an extremely good mixing quality. In conjunction with the large mixing volume, the system guarantees the best possible blending.

Easy Use
Well-organized controls, easy dismantling and maintenance and an intelligent transport solution combine to make the D50 very easy to handle.

Easy Life
A combination of PU components and our patent mixing system increases service life and extends service intervals.

Areas of use and applications
All dry mortars, such as:

  • Bricklaying mortar.
  • Insulating plasters.
  • Floor screed.
  • Lime gypsum plasters.
  • Cement plasters.
  • Lime plasters.
  • Lime cement plasters.
  • Gypsum plasters.
  • Finishing plasters.
  • Enriched special mortars.
  • Gunite sprayed concrete.
  • Dry process Shotcrete.

Scope of delivery
Continuous mixer incl. mixer motor, transport screw and mixing shaft. The associated control panel S40 is ordered separately.

Recommended accessories

  • Control panel S40.
  • Mixing shafts.
  • Transport screw.
  • Blow-out device.

Technical Data


Conveying volume: approx: approx. 50 l/min (depending on the transport and mixing shaft)
Drive motor: 4 kW, 400 V, 50 Hz
Silo connection: NW 250
Dimensions: approx. 2100 x 350 x 350 mm
Weight: approx. 140 kg



Electrical connection: 400 V, 50 Hz, 3 ph
Fuse: 16 A
Connecting cable: 5 x 1.5 mm²
Connector: 16A, 5p, 6h
Water supply: 3/4“ water hose with GEKA coupling, required water pressure/min. 2.5 bar while the machine is running
Dimensions: depending on model
Weight: depending on model


We’ve put together some useful information on this product available for download

D50 Data Sheet
D50 Flyer
D50 Parts List
D50 Operation Instructions
