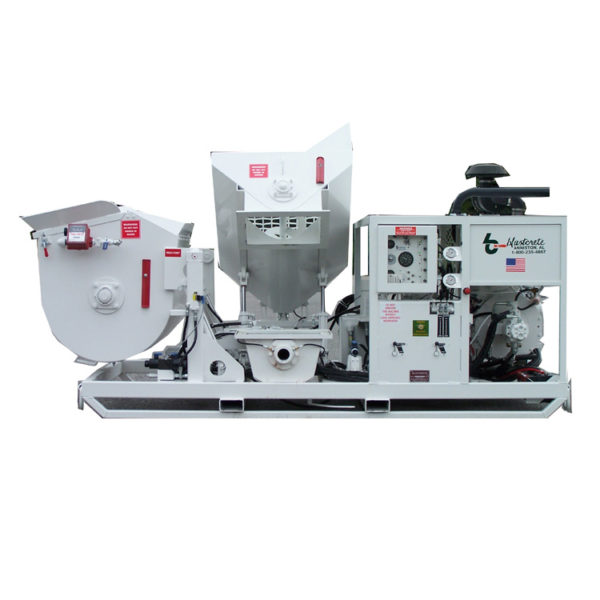

RMX-5000 Wet Process Shotcrete & Pump Casting Machine

RMX-5000 Wet Process Shotcrete & Pump Casting Machine – Available for Sale and Hire

The RMX-5000 is an ultra high-pressure 3-inch swing tube mixer/pump designed for refractory applications, pumping and spraying Plaster, Render, Wet Process Shotcrete and Sprayed Concrete materials extreme distances.

Share this product

Description

RMX-5000
Features

  • 2200 PSI Piston Face Pressure for Refractory Wet Process Shotcrete and Dense Conventional Shotcrete Applications.
  • 1000 lb. Capacity Paddle Mixer with Planetary Gearbox Drive for Refractory Applications.
  • 1000 lb. Capacity Spiral Mixer for Conventional Shotcrete or Plaster Applications.
  • Hydraulic Receiving Hopper Lift for Easy Access to Swing Tube Section for Cleaning and Maintenance.
  • Fill Rite Water Meter.
  • Convenient 3” HD Side Discharge.
  • Reliable Solid State Electronics.
  • CE Certification.


Power Options

  • Kubota V3600 66 HP Kubota Water Cooled Diesel.
  • 50 HP Electric Motor.


Options

  • 2,000 PSI Hydraulic Pressure Washer
  • Vogel Auto Lubrication System
  • 150 gallon. Water Tank with 2” Flow Meter
  • Spare Tire Mounted
  • Pendant or Wireless Remote
  • Skid Mounted with Forklift Tubing

Technical Data

Pump: 3” X 18” Ultra High Pressure Swing Tube
Pump Pressure: 2,200 psi
Mixer: 1,000 lb. Capacity Hydraulic Paddle Mixer-Refractory Applications or 1,000 lb. Capacity Hydraulic Spiral Mixer- Shotcrete and Plaster Applications
Output: 0-5 Cubic Yards Per Hour
Discharge: 3″ (Side Discharge)
Hopper: 1,200 lb. Capacity Receiving Hopper with Hydraulic Agitator
Trailer: Single 6,000 lb. Capacity Axle with Electric Braking and Lights
Dimensions: 165” X 76” X 63
Weight: 5000 lbs

Maximum theoretical values listed
*Pumping / Conveying distances shown were calculated at the maximum volume output. They are to be used as a guide only and can be exceeded on specific projects. Maximum attainable distances depend on material mix design, pipeline diameter and specific job site conditions.

Note: Maximum output and pressure cannot be achieved simultaneously. Specs subject to change without prior notice. Weights vary with options selected. Photos for illustrative purposes only. Refer to operational manual for safe and proper equipment operation.

Downloads

We’ve put together some useful information on this product available for download

RMX-5000 Data Sheet
RMX-5000 Flyer
RMX-5000 Pump Parts List
RMX-5000 Wear Parts List
RMX-5000 Operating Instructions
